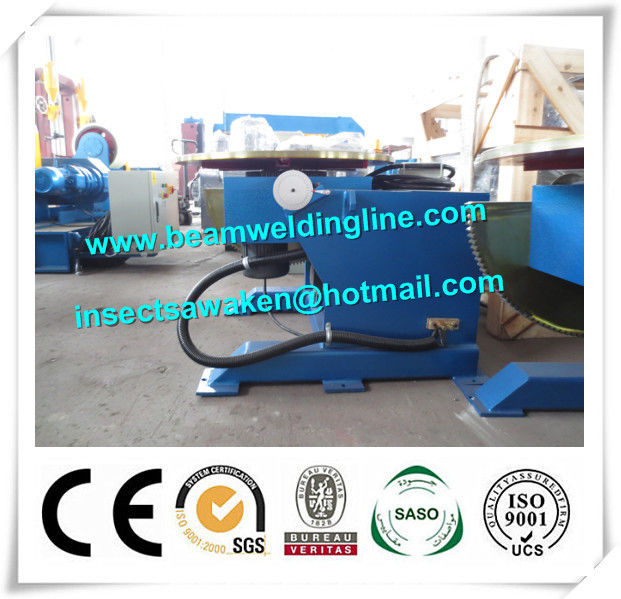

1T advanced Small Welding Positioner equipment , Turntable Weld Manipulator CE
Tilt degree | 0-90 degree | Loading capacity | 1T |
---|---|---|---|
Worktable diameter | 1200mm | ||
แสงสูง | column and boom welding manipulators,weld positioner |
1. Simple introduction
This machine is a kind of our advanced welding positioner equipment, which is be researched and manufactured absorbing domestic and international advanced positioner equipment.
The worktable is tilted by motor, accurate and reliable positioning. It makes the work-piece in perfect position for welding. The worktable adopts AC frequency conversion speed, so large range of variable speed and high precision, weld at need speed. Accordingly this device has advantages of compact structure, small cubage, beautiful shape, lightweight, convenient operating and so on. The machine can assort all kinds of auto welding or manual welding, improving welding quality, lessening welding labor and improve productivity.
This machine can be used at automatic welding or manual welding, such as pipe horizontal welding, tube end welding, axle, tray and barrel, it can be widely used in the pressure vessels equipment, metallurgy, electric power, chemical machine industry etc.
2. Technical parameter
No. | Item | Specification | ||
1 | Loading capacity | 5T | 10T | |
2 | Power | Rotation motor | 2.2KW | 3KW |
Tilt motor | 3KW | 5.5KW | ||
3 | Maximum gravity height | 300mm | 400mm | |
4 | Maximum centroid eccentricity | 200mm | 200mm | |
5 |
Working table |
Diameter | 1500mm | 2000mm |
Rotation speed | 0.05-0.5rpm | 0.02-0.2rpm | ||
Tilt speed | 0.14rpm | 0.14rpm | ||
6 | Tile angle | 0-120 degree | 0-120 degree | |
7 | Package dimensions | 2.2*1.5*1.45m | 2.7*2*1.85m | |
8 | Weight | 3.7T | 5.8T |
