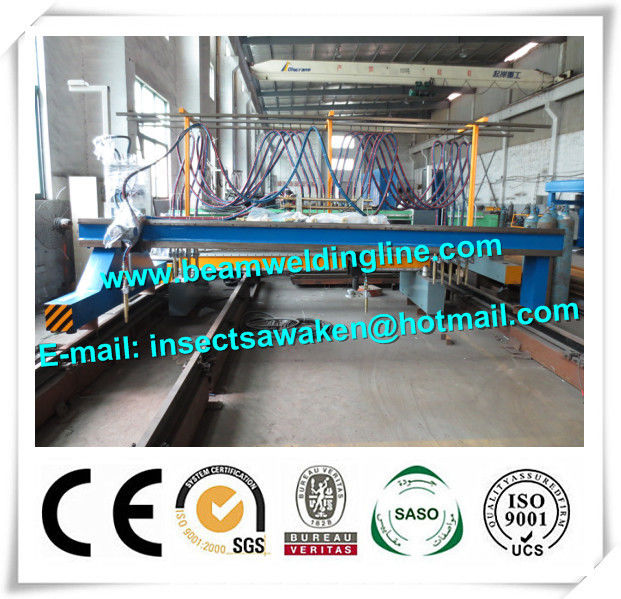

Multiple Strip H Beam CNC Plasma Cutting Machine 4000mm Cutting Width

รายละเอียดสินค้า

Place of Origin: CHINA

ชื่อแบรนด์: Friendship Machinery

ได้รับการรับรอง: CE, ISO

Model Number: CG-4000

เงื่อนไขการชำระเงินและการจัดส่ง

Minimum Order Quantity: 1

ราคา: USD16000

Delivery Time: 25 working days

รับราคาที่ดีที่สุด
เน้น:

cnc plasma cutter

,

pipe bevelling machine

Cutting Way:
Plasma and Flame
Cutting Width:
4000mm
Cutting Length:
15000mm
Control Way:
CNC control
Effective cutting width:
80-3300mm
Longitudinal cutting torch:
9 sets
Cutting Way:
Plasma and Flame
Cutting Width:
4000mm
Cutting Length:
15000mm
Control Way:
CNC control
Effective cutting width:
80-3300mm
Longitudinal cutting torch:
9 sets
Multiple Strip H Beam CNC Plasma Cutting Machine 4000mm Cutting Width





Multiple Strip H Beam CNC Plasma Cutting Machine 4000mm Cutting Width



1. Technical parameters



● Machine width: 4000mm

● Effective cutting width: 80-3300mm

● Rail length: 15000mm

● Effective cutting length:13500mm

● Cutting thickness: 6-100mm

● Cutting speed: 50-1000mm/min

● Quick return speed: 3000mm/min

● Longitudinal cutting torch: 9 sets

● Transversal cutting torch: 1 set

● Air supply: Oxygen, Acetylene, Propane





2. Provide goods and compose parts



● Main frame: framework, pipeline, transverse skid, transverse gearbox.

● Guide rail: guide rail and the appendix.

● Cutting torch: 1 set of transversal cutting torch, 9 sets of longitudinal cutting torch.

● Electric control: electrical cabinets, vertical and horizontal motors.

● Air supply: Oxygen converge-wires (1 piece), Propane converge-wires (1 piece).

● Spare parts: 0 # nozzles*15, button switch*3 and so on.

● Drive type: rack and pinion drive, smooth and reliable.



Multiple Strip H Beam CNC Plasma Cutting Machine 4000mm Cutting Width 0
