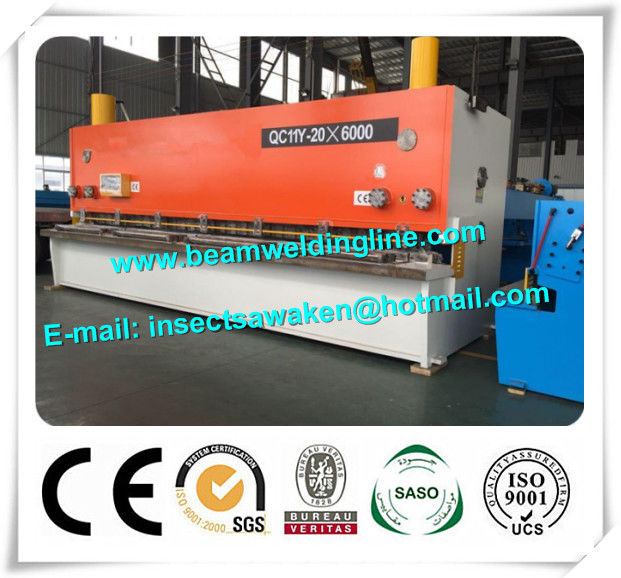

Steel Plate E21S NC Hydraulic Swing Beam Shear Hydraulic Guillotine Shearing Machine
|Model||QC11Y-16×6000||The maximum shear thickness||16mm|
|The maximum shear width||6000mm||The sheared steel sheet strength||450N/mm2|
|Shearing angle||0.5-3°||The strokes||7min-1|
hydraulic guillotine shearing machine,
cnc hydraulic shearing machine
● This device suit to shear various material by different need, main suit to shipbuilding, car made, steel made, switch appliance, contain made, machinery made and light manufacturing and so on. As the major support of shipbuilding and equipment made, and replacement of large hydraulic guillotine shearing machine in time, to suit new requirement, that is very important.
● The device use one-piece steel sheet welded structure, and use vibration age treatment to release internal stress, with good rigidity and stability.
● Hydraulic driven, accumulator return, working is stable, low noise. Through electric system and hydraulic system cooperate in harmony, to get the ideal shearing performance.
● The controller adopts EC21S.
2. Technical parameters
|The maximum shear thickness||mm||16|
|The maximum shear width||mm||6000|
|The sheared steel sheet strength||N/mm2||450|
|The shearing angle||°||0.5-3|
|The blade length||mm||6060|
|The distance between uprights||mm||6150|
|The backgauge range||mm||20-800|
|The worktable height||mm||1000|
